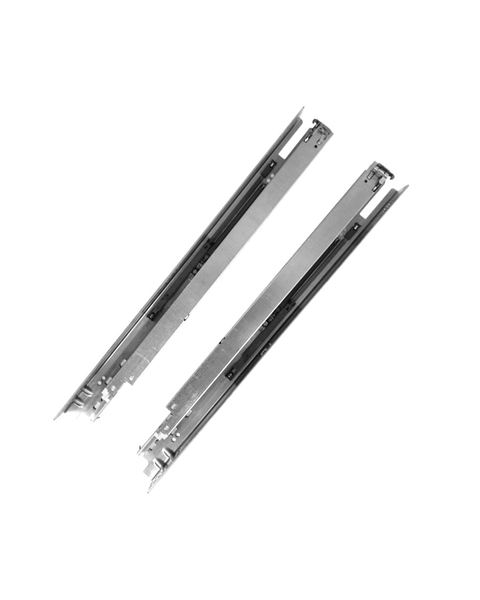

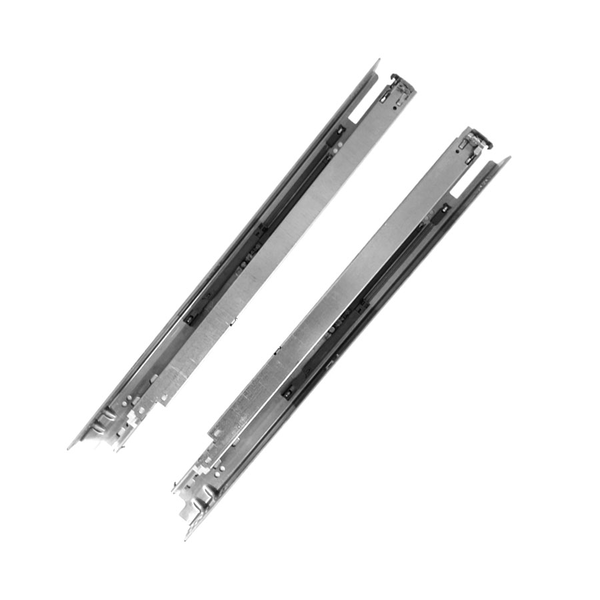

Blum Tandem 563H 9" Length Blumotion Soft-Close Undermount Full-Extension Slide for 1/2 Inch to 5/8 Inch Thick Drawer Sides, Front Locking Clips Required, 100 lb. Load Rating
Rating 4.7 | 290 Reviews | Our Item Number BS563H2290B10
The Blum Tandem BLUMOTION undermount slide system delivers smooth, full-extension performance with built-in soft-close action. The 563 series includes three models: the 563 for standard 5/8 Inch drawer construction, the 563H for 1/2 Inch to 5/8 Inch sides, and the 563F for 5/8 Inch to 3/4 Inch sides. All support up to 90-100 lbs and feature Blum’s renowned durability. In face-frame cabinets, a rear mounting bracket is required for proper installation. At the drawer front, locking devices secure the drawer and provide adjustment options, with choices for standard use, depth adjustment, or inset applications-ensuring a precise, custom fit.
$
28.51
$27.08/ea for 6
$40.73
SAVE 30%
Ends Jun 21
Ends Jun 21
Length:
New! CabinetParts VLS 2.0
Undermount Drawer Slides, Now at $16.74
Undermount Drawer Slides, Now at $16.74
Rated 4.7 Stars, the Self-Made CabinetParts.com VLS 2.0 offers unmatched quality at just $16.74. Don't miss out!
Shop Now Product Info Length: 9", Overall Length: 10-3/16", Closing Type: Soft Closing, Load Rating: 100 lbs, Extension: Full, See more product details
or
Packs ™Save more! Buy a Pro Pack.
Large Project?
Orders $2500+ Qualify for Special Discounts.
Build your item list and get a Quick Quote
view bid cartAll the product info you could ask for...
-
Size Info
- Length : 9"
- Drawer Material Thickness : 1/2 Inch to 5/8 Inch
- Overall Length : 10-3/16"
- Notes : For 1/2 Inch to 5/8 Inch maximum drawer thickness
Full extension
Locking devices enable easy drawer insertion & removal
Integrated BLUMOTION
-
Manufacturer Info
- Manufacturer Series Name : 563H With BLUMOTION
- Manufacturer Part # : 563H2290B10
- Manufacturer : Blum
-
Other Important Info
- Closing Type : Soft Closing
- Product Finish : Zinc Coated
- Product Type : Drawer Slide: Soft-Close
- Load Rating : 100 lbs
- Extension : Full
- Material : Steel
Manufacturer Resources
